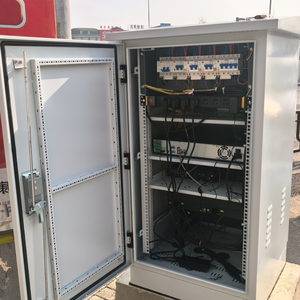

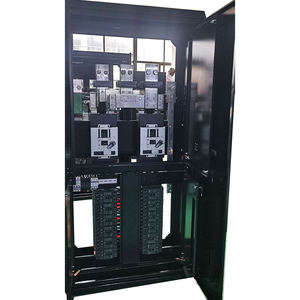

Our flagship product selection covers heavy industrial building switchboards, waterproof outdoor battery storage racks, solar UPS custom enclosures, and low-voltage energy meter distribution boards.
Leveraging high-precision CNC sheet metal fabrication, laser cutting, automated robotic welding, and rigorous testing protocols to deliver zero-defect power containment systems worldwide.
The structural integrity of an industrial power cabinet is fundamentally dictated by its core material substrate. In marine, offshore wind, and aggressive chemical processing environments, SUS304 and SUS316L stainless steel offer non-magnetic, corrosion-resistant characteristics capable of enduring over 1,000 hours of continuous salt spray testing under ASTM B117 standards.
For inland industrial buildings and commercial substations, high-tensile cold-rolled steel (SPCC) or hot-dip galvanized steel (SGCC) protected by thermosetting epoxy powder coatings provides an optimal balance between structural rigidity, cost efficiency, and mechanical impact resistance up to IK10 standards.
Modern electrical enclosures operating outdoors face severe thermal cycling and condensation risks. Achieving IP55 to IP66 ratings requires robotically poured polyurethane seamless foam gaskets that maintain memory retention across temperature ranges from -40°C to +85°C.
Thermal equilibrium is maintained through forced air circulation, closed-loop heat exchangers, or micro air-conditioning units integrated into double-walled insulated enclosures. Controlled PTC internal heating elements coupled with hygrostat controllers actively prevent dew point precipitation, eliminating dielectric breakdown risk across internal busbars and circuit breakers.
| Material / Spec | Protection Rating | Ideal Application Environment | Key Performance Strengths |
|---|---|---|---|

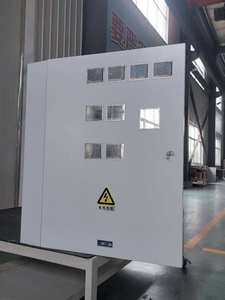

| Cold-Rolled SPCC Steel | IP54 - IP55 | Indoor Commercial & Multi-User Distribution Boards | High structural rigidity, economical, precise CNC bend accuracy. |
| Hot-Dip Galvanized SGCC | IP55 - IP65 | Outdoor Industrial Substations & APFC Cabinets | Superior rust protection, high mechanical load capacity. |
| SUS304 / 316L Stainless Steel | IP66 / NEMA 4X | Offshore Wind, Solar Racks & Marine UPS Systems | Maximum chemical/salt spray resistance, non-magnetic, 20+ year lifespan. |
| Aluminum Alloy (5052-H32) | IP65 | Telecommunications & Portable Off-Grid Units | Lightweight, rapid thermal dissipation, highly portable. |
The global shift toward microgrids, renewable energy storage (BESS), and intelligent power monitoring is redefining B2B power cabinet specification requirements worldwide.
Power distribution cabinets are evolving from passive junction boxes into active hybrid control hubs. Modern specifications mandate specialized physical containment for 48V/HV lithium battery modules, incorporating built-in aerosol fire suppression systems, thermal insulation barriers, and dedicated ventilation ducts to prevent thermal runaway propagation.

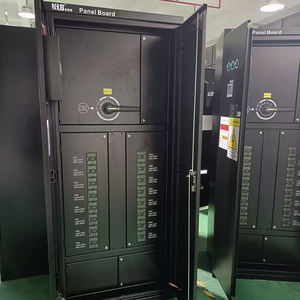

With industrial energy tariffs imposing steep non-linear penalties for poor power factors, demand has surged for custom distribution cabinets pre-fitted with Automatic Power Factor Correction (APFC) equipment. Integrated microprocessor controllers dynamically switch capacitor steps to maintain cosine phi near 0.99 while filtering harmonic distortion.
Global EPC contractors increasingly require power cabinets embedded with IoT gateways. Real-time RS485 / Modbus communication protocols transmit busbar temperature, ambient humidity, circuit breaker status, and harmonic levels to cloud dashboards, facilitating predictive maintenance long before site blackout risks occur.
As a leading Chinese supplier and exporter of high and low-voltage power cabinets, our state-of-the-art facilities combine precision German TRUMPF fiber laser cutters, CNC punch presses, and fully automated robotic bending cells. Every custom enclosure undergoes rigorous dimensional verification, structural load testing, and IP hydrostatic testing prior to dispatch.
To request a fast, accurate engineering quotation, please prepare the following technical parameters when submitting your inquiry:
Clear engineering and commercial answers to help overseas procurement managers, electrical engineers, and EPC contractors make informed sourcing decisions.

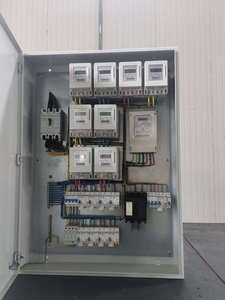

Our complete power cabinet series, including low-voltage DBX meter boards and industrial switchboards, are certified according to international standards such as IEC 61439-1/2, CE (Low Voltage Directive 2014/35/EU), ISO 9001:2015 Quality Management, and ISO 14001 Environmental Management. Custom enclosures can also be engineered to comply with NEMA 3R, 4, 4X, and IP66 ingress protection criteria under IEC 60529.
Yes. Over 70% of our production consists of tailored OEM and ODM solutions. Our engineering team utilizes SolidWorks and AutoCAD to review your structural schematics, single-line diagrams (SLD), cutout requirements, busbar arrangements, and gland plate positioning. We issue full 3D assembly proofs for your engineering sign-off before mass fabrication begins.
Outdoor cabinets subjected to thermal swings utilize dynamic climate control systems. We integrate thermostatically controlled PTC anti-condensation heating elements, internal cooling axial fans or closed-loop air conditioners, and hygrostat sensors. Furthermore, continuous polyurethane foam gaskets combined with rain-canopy roof structures ensure watertight sealing under torrential rainfall and wind-driven spray.

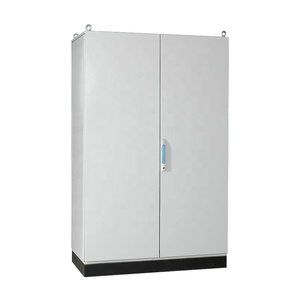

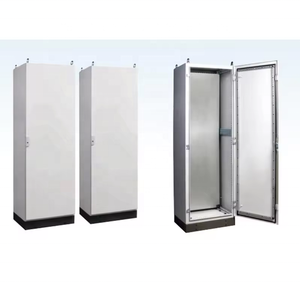

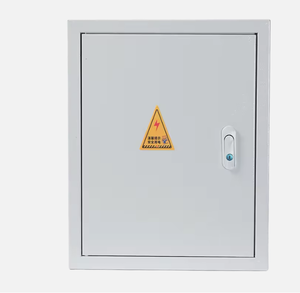

For standard modular steel cabinets (such as floor-standing SAIPWELL style enclosures or flush-mount distribution boxes), our minimum order quantity starts as low as 5 to 10 units. Sample prototypes are completed within 7 to 10 business days, while full container load (FCL) volume orders generally require 20 to 30 calendar days depending on component component sourcing (breakers, meters, APFC capacitors).
All floor-standing switchboards and large steel distribution cabinets are mounted on reinforced wooden pallets with rubber shock isolation pads. Enclosures are wrapped in heavy-gauge desiccant-infused moisture vacuum foil, fitted with edge-guard protection, and enclosed in heat-treated ISPM 15 compliant fumigation-free wooden crates to guarantee zero transit oxidation or mechanical distortion.
Connect directly with our senior electrical technical sales team. We provide rapid schematic analysis, detailed BOM cost estimations, and full OEM support for global tenders.
